    主頁 > 產品中心 > 電源供應 > 12W Series-Compact Size > UME-12W series-A06 USB Type ( PSE/UL/CCC/CE )

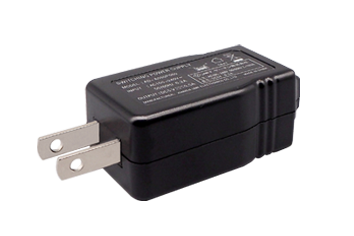

    UME-12W series-A06 USB Type ( PSE/UL/CCC/CE )

    UME-12W series-A06 USB Type ( PSE/UL/CCC/CE )

    產品介紹

    UME-A06 USB Type ( PSE/UL/CCC/CE )、10W Max 20VA Max

    100-240VAC Universal Input

    Regulated Output with Low Ripple Noise

    Private Label Marking Available

    Modified and Custom Design Available

    產品特點

    Model No.

    AC Input Rating

    DC Output Rating

    UME-A06

    90V~264V

    5V/0.5A     5V/1.0A     5V/2.0A

    Green Mode

    CEC, Energy Star Level VI, ErP Stage 2 & NRCan

    Voltage

    100-240 VAC

    Line Frequency

    50-60Hz

    Current

    2A Max.

    Load Regulation

    ± 5% (Typical)

    Ripple

    1~2% Vp-p Max. for Output Voltage@ Full Load  200(Vp-p)(mV)

    Transient Response

    0.5mS for 50% Load Change Typical

    Holdup Time

    10mS @ Full Load

    Protection

    Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

    DC Cord

    22AWG / 20AWG / 18AWG

    Safety Approvals

    ForUK- CE / LPS

    ForUSA- UL / cUL / FCC / PSE / LPS

    ForChina-  CCC / LPS

    ForEurope- CE / LPS

    Electrical

    Dielectric Withstand

    3,000 VAC Primary-Secondary

    Leakage Current

    0.25mA @ 2 Pin

    Efficiency

    Energy Star Level VI, ErP Stage 2, GEMS & NRCan Certified

    EMI Conduction&Radiation

    Compliance to EN55022 Class B

    Harmonic Current

    Compliance to EN61000-3-2,3

    EMS Immunity

    Compliance to EN61000-4-2,3,4,5,6,8,11

    MTBF

    300,000 Calculated Hours at 25°C, by Telcordia SR-332

    Environmental

    Operaturing Temperature

    0 to +40°C

    Storage Temperature

    -40 to +80°C

    Relative Humidity

    Operating: 10 to 90% RH  Storage: 10 to 90% RH

    Mechanical

    Case Dimension

    PSE/UL/CCC- 58 x 25 x 32 (mm)

    Weight

    主要用途 power supply 產品系列

    12W Series-Compact Size

    相關下載
